Description
PTO Shaft, 1-3/8″ 6-Spline x 1-3/8″ 6-Spline F/ Speader
PTO Shaft, 1-3/8″ 6-Spline x 1-3/8″ 6-Spline F/ Speader
Specifications
High Quality pto cardan shaft tractor with slip clutch
- “To Fit” Spreader
- Series 1
- 1-3/8″ 6-spline x 1-3/8″ 6-spline

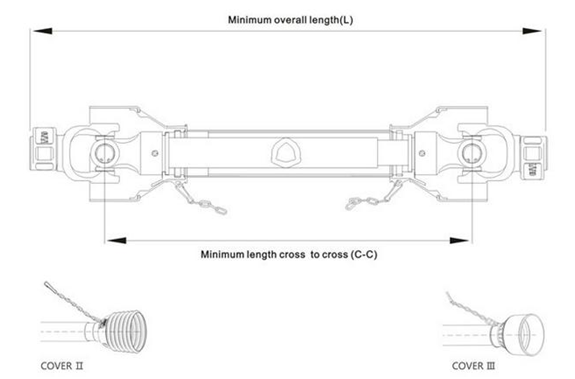

- Overall length: 20″ cross to cross
- Max HP 540/1000 – 16/25
Features:
| 1.Model Number/Cross Series: | T01,T02,T03,T04,T05,T06,T07,T08 and some special cross Journal |
| 2. Dimension/Size: | Minimum overall length: 600-1800mm or 27″-60″ |
| 3. Working Condition: | For Tractors, Trucks and Agricultural Use |
| 4. Shield Colour: | Yellow or black |
| 5. Material: | Steel and Plastic |
| 6. Tube: | Triangular, Lemon, Star and Splined |
| 7. Apply | Tractor, Rotary Cultivator, Planter Machine ,Farm and etc. |
| 8. Certificate | CE Certificate |

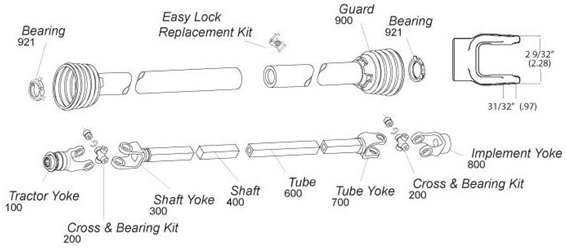

PTO shaft structure:
Technical data:
| Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
| Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
| Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
| Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
| Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
| Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
| Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
| Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
| Series 8 | 35mm | 106.5mm | 70KW | 95HP | 110KW | 150HP |
| Series38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |
Product advantages:
1.All parts are forged.
2. Use vertical broacher machine,this will produce good centric degree.
3. Plastic cover can work normally between -35 °C to 80 °C .
4. All torque limiter are torque set ready before transportation.
